Description.
The Montarbo B112 is a bass-reflex cabinet is equipped with a 12” woofer and a 1.35” compression driver boosted by a 1200 W Class D amp module.
B series’ advanced DSP featuring FIR filters allows a smooth audio performance as well as an impressive dimension/sound pressure level up to 129 dB.Set product image
B series speakers feature 3 input channels (Mic/line, Line, Bluetooth) with independent levels. Bluetooth devices can be easily connected thanks to the on-board “PAIR” button.
Moreover, 4 different on-board presets allows users to optimise the audio performance for the application in use.
A clean design integrates 3 handles and rigging points for fixed installation to the lightweight polypropylene cabinet which also allows horizontal stage monitor use, thanks to a 40° inclination of 2 sides of the box (a dedicated preset wedge EQ is selectable on board). The flange for pole fixing on the bottom of the box allows users to choose a 0° or a 7.5° inclination of the cabinet placed on a standard 35 mm tripod.

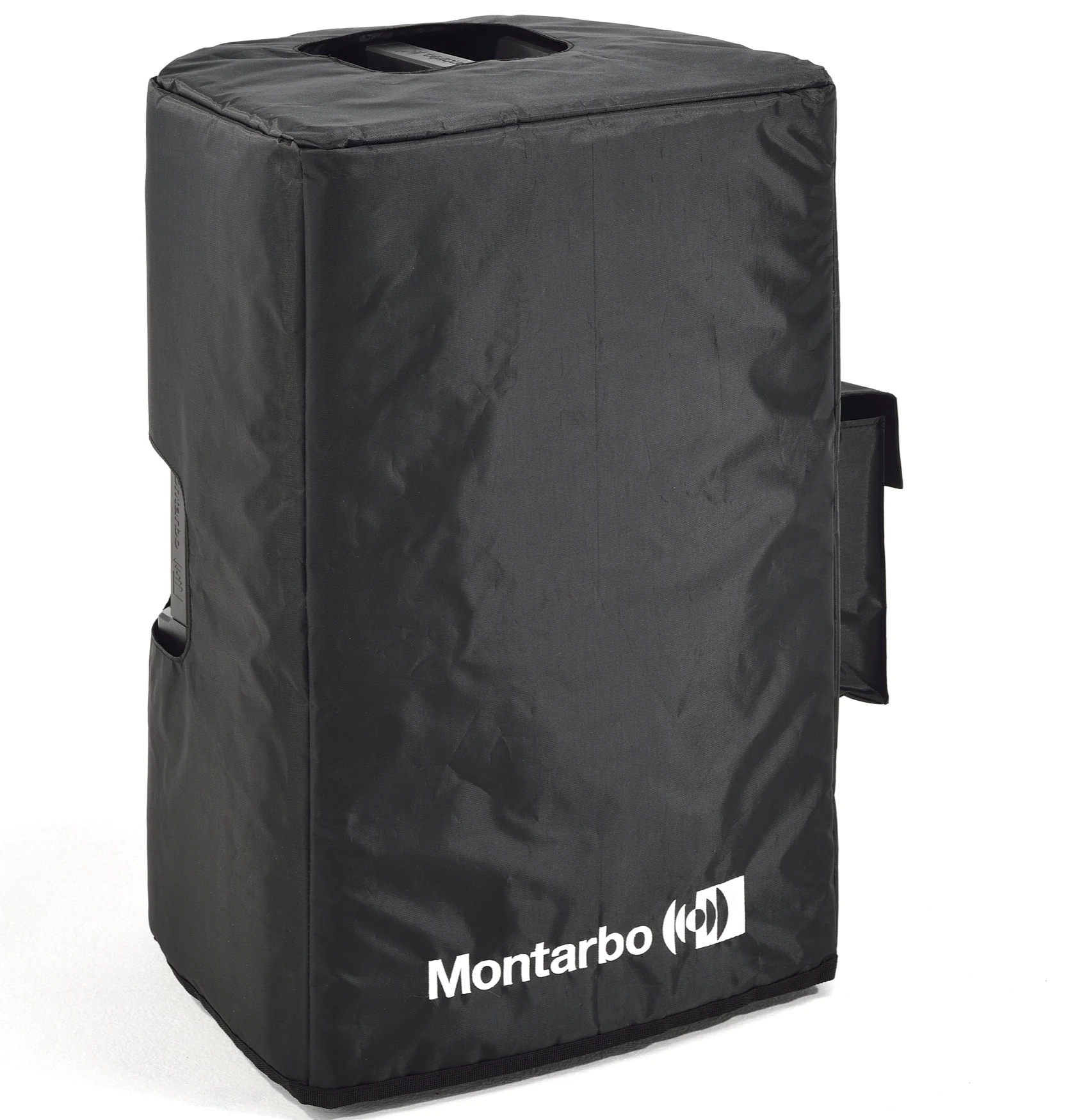

Covers for transport and weather protection are available as accessories for every model in Montarbo B series.
Key Features.
-
Speaker Type – 2-way Active bass reflex
-
Frequency Response [-10 dB] – 54 Hz – 20 kHz
-
Max SPL – 129 dB
-
HF – 1.35″ driver
-
LF – 12″ – 2.5″ VC
-
Dispersion – 90° H x 60° V
-
Crossover Frequency – 1.8 kHz
-
Amp Class – D A/B
-
RMS Power – 600 W
-
Peak power – 1200 W
-
Cooling – Convection
-
Advanced Functions – FIR Filters
-
DSP – 28/56 Bit
-
AD/DA Converter – 24 bit, 48 kHz
-
Controls – Ch. levels, MAIN level, PRESET button, Channel sens. LINK/MIX selection
-
Connectors – CH1: Combo CH2: XLR-F jack 6,35mm (1/4”) AUX IN: mini-jack 3,5mm LINE OUT: XLR-M
-
Bluetooth ® – 5.0 stereo
-
Dimensions (W x H x D) – 365 x 625 x 345 mm (14.4” x 24.6” x 13.6”]
-
Weight – 17.9 kg [39.46 lb]
-
Cabinet – Polypropylene
