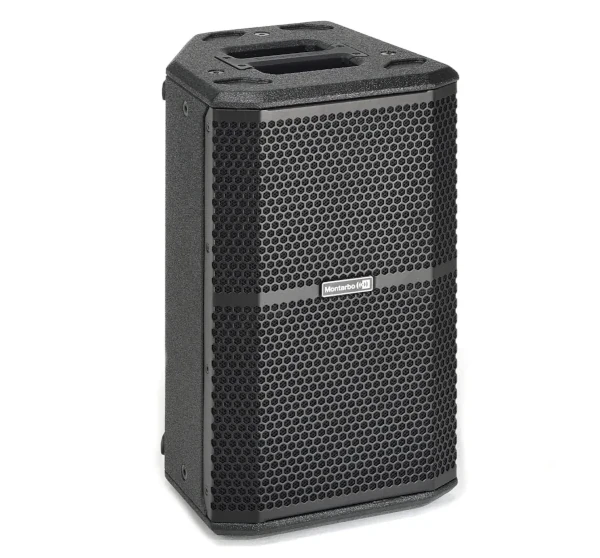

Montarbo R Series 8″ Active Speaker
The Montarbo R Series includes a range of full-range wooden cabinets from 8″ to 15″, complemented by 15″ and 18″ active subwoofers. Designed for professional applications, the 8″ full-range cabinet delivers impressive sound pressure and clear, faithful vocal reproduction. Advanced FIR filter processing ensures a linear phase response for precise, transparent audio.
Four onboard EQ presets provide maximum flexibility for different setups, including use as a stage wedge. The speaker features two input channels with independent level controls, including one mic/line combo input and one additional line input. A switchable output allows users to select either a direct link signal or a mix of the two input channels.
The multilayer wooden enclosure is finished in elegant black polyurea and features flush-mounted aluminum handles, combining durability with a sleek, professional appearance.
Key Features
-
Speaker Type: 2-way active bass reflex
-
Frequency Response (-10 dB): 63 Hz – 20 kHz
-
Maximum SPL: 125 dB
-
HF Driver: 1.35″
-
LF Driver: 8″ with 2″ voice coil
-
Dispersion: 90° (H) × 70° (V)
-
Crossover Frequency: 1.8 kHz
-
Amplifier Class: D A/B
-
RMS Power: 200 W
-
Peak Power: 400 W
-
Cooling: Fan-assisted
-
Advanced Processing: FIR filters
-
DSP: 28/56-bit
-
AD/DA Converter: 24-bit, 48 kHz
-

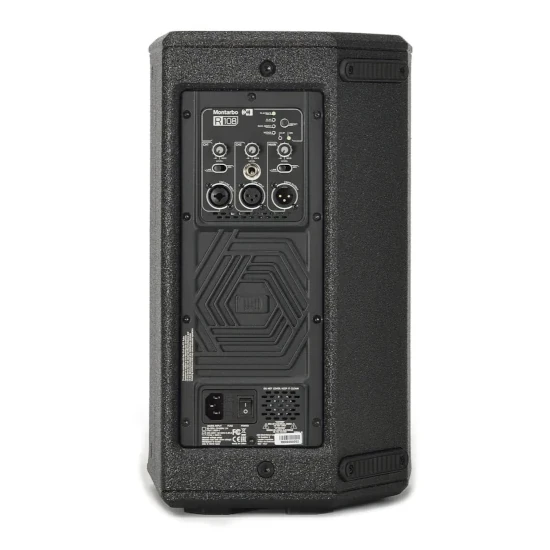

Controls: Channel level, main level, preset selector, channel 1 sensitivity, link/mix output
-
Connectors:
-
CH1: Combo (XLR/Jack)
-
CH2: XLR-F 6.35 mm (1/4”) jack
-
Line Out: XLR-M
-
-
Dimensions (W × H × D): 264 × 440 × 260 mm (10.4” × 17.3” × 10.3”)
-
Weight: 10.9 kg (24 lb)
-
Cabinet: Multilayer wood with polyurea finish
