Description
The Montarbo R Series consists of four full-range wooden cabinets ranging from 8″ to 15″, along with single 15″ and 18″ active subwoofers. Designed for professional audio applications, the series delivers impressive sound pressure levels and exceptional vocal clarity. Utilizing FIR filter technology, the R Series ensures linear phase response and outstanding sonic precision.
Each full-range cabinet includes four onboard EQ presets for maximum versatility across different scenarios, including use as stage monitors. The speakers feature two input channels with independent level controls—one mic/line combo input and one additional line input. An output switch allows users to select either a direct link signal or a mixed output from both channels.

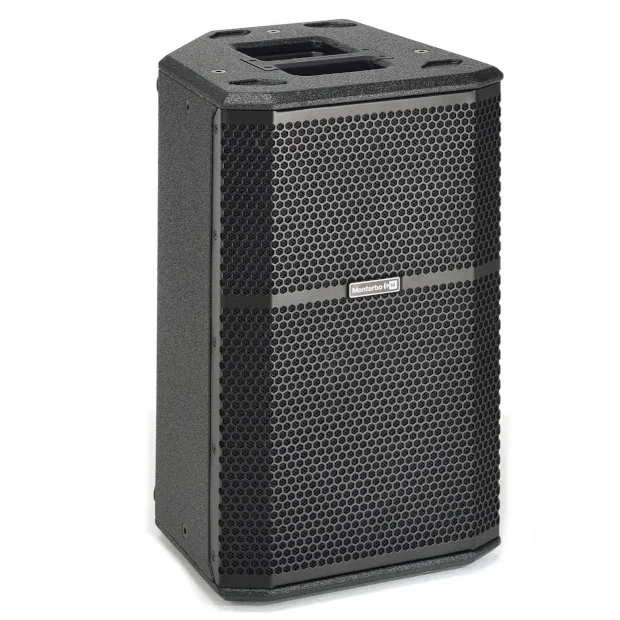

The enclosures are crafted from durable multilayer wood with a sleek black polyurea finish, complemented by flush-mounted aluminum handles for easy transport and a refined professional appearance. The speaker can also be angled on it’s side aswell on a pole. This is particularly useful because it can double up as a stage monitor or a front of house speaker.
Key Features
-
Speaker Type: 2-way active bass reflex
-
Frequency Response (-10 dB): 61 Hz – 20 kHz
-
Maximum SPL: 127 dB
-
HF Driver: 1.35″
-
LF Driver: 10″ with 2″ voice coil
-
Dispersion: 90° (H) x 70° (V)
-
Crossover Frequency: 1.78 kHz
-
Amplifier Class: D A/B
-
RMS Power: 200 W
-
Peak Power: 400 W
-
Cooling: Fan-assisted
-
Advanced Processing: FIR filters
-
DSP: 28/56-bit
-
AD/DA Converter: 24-bit, 48 kHz
-

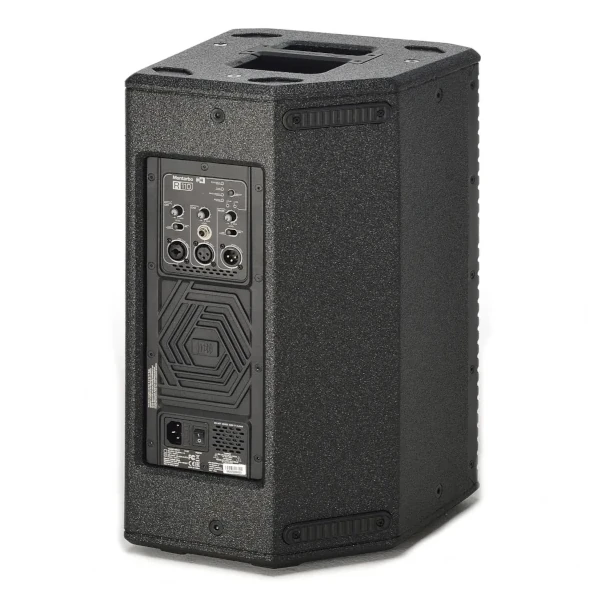

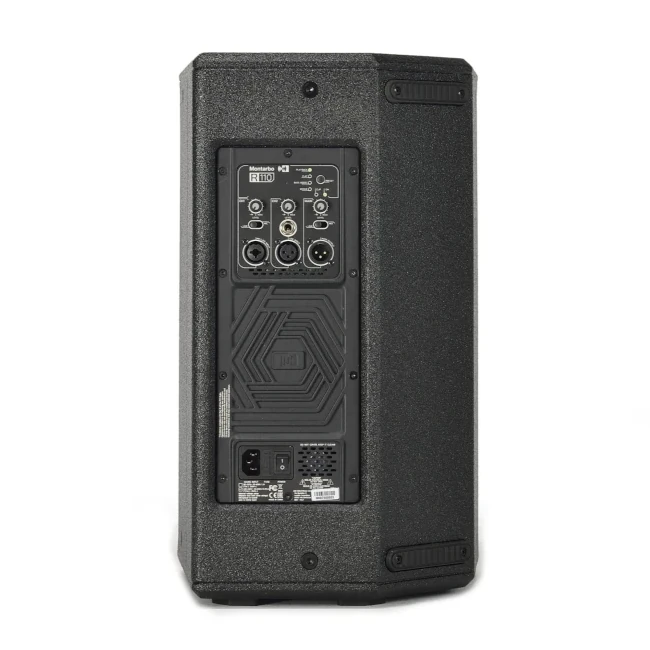

Controls: Channel level, main level, preset selector, channel 1 sensitivity, link/mix output
-
Connectors:
-
CH1: Combo (XLR/Jack)
-
CH2: XLR-F 6.35 mm (1/4”) jack
-
Line Out: XLR-M
-
-
Dimensions (W x H x D): 304 x 505 x 305 mm (11.9” x 19.9” x 14.4”)
-
Weight: 12.7 kg (28 lb)
-
Cabinet: Multilayer wood with polyurea coating
