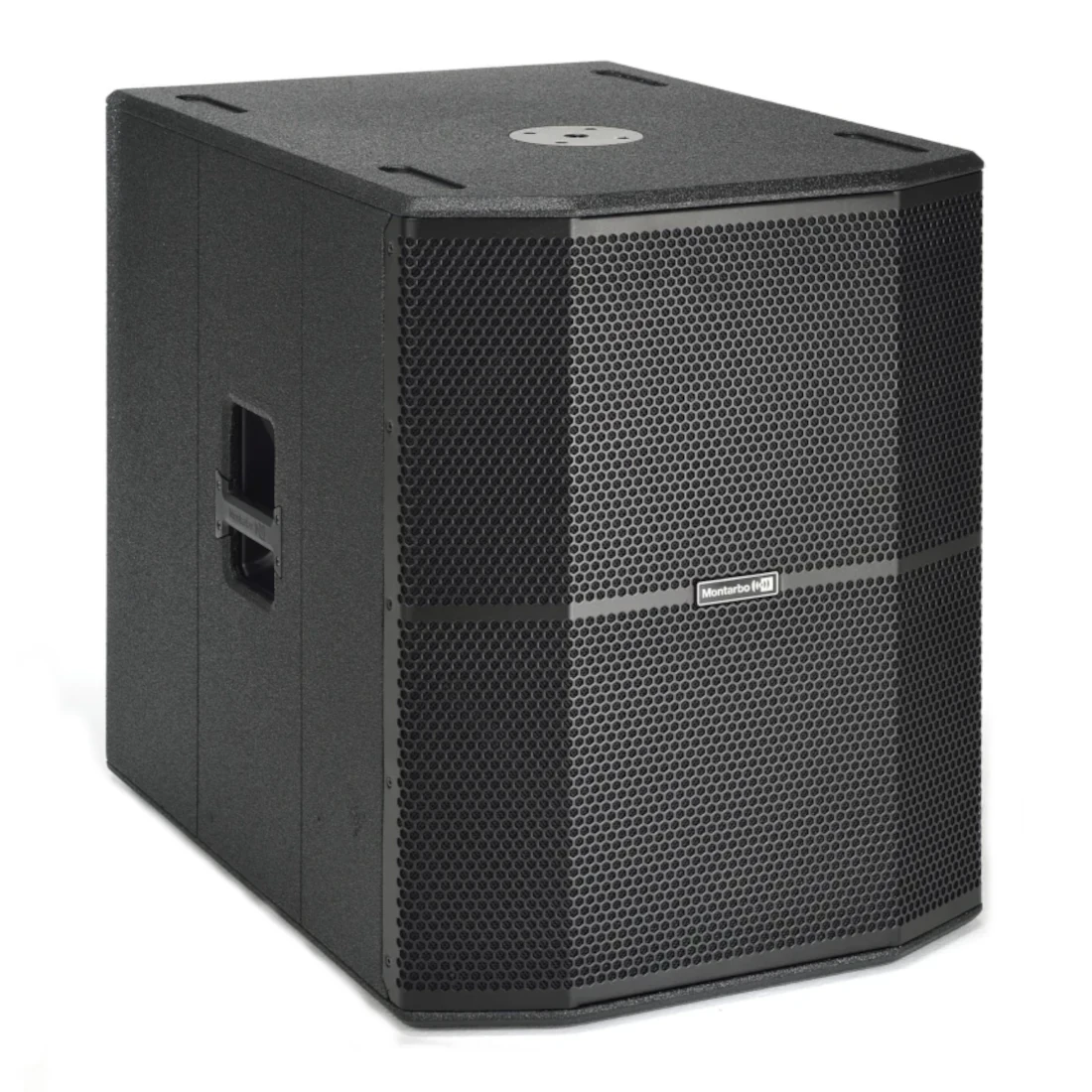

Montarbo R15S Active Subwoofer
The Montarbo R15S active subwoofers combine the robust, elegantly finished enclosures of their full-range counterparts with professional-grade performance. Featuring an M20 thread for pole mounting, these subs are quick and easy to integrate into any PA setup.
Both models come equipped with stereo inputs and a built-in crossover output, streamlining plug-and-play operation. For example, when using a PA with one sub and two tops, no external processor is required: simply feed the sub both left and right signals, and split the output directly via the onboard crossover. When desired, the LINK output can provide a full-range signal to another subwoofer.
Key Features:
-
Speaker Type: Active Stereo Subwoofer
-
Frequency Response [-10 dB]: 45 Hz to cut-off frequency
-
Maximum SPL: 130 dB
-
Low-Frequency Driver: 15″ with 4″ voice coil
-
Amplifier Class: D
-
RMS Power: 500 W
-
Peak Power: 1000 W
-
Cooling: Passive Radiator
-
DSP: 28/56 Bit
-
AD/DA Converter: 24 bit / 48 kHz
-
Controls: Level, Crossover Selection, Polarity Selection
-

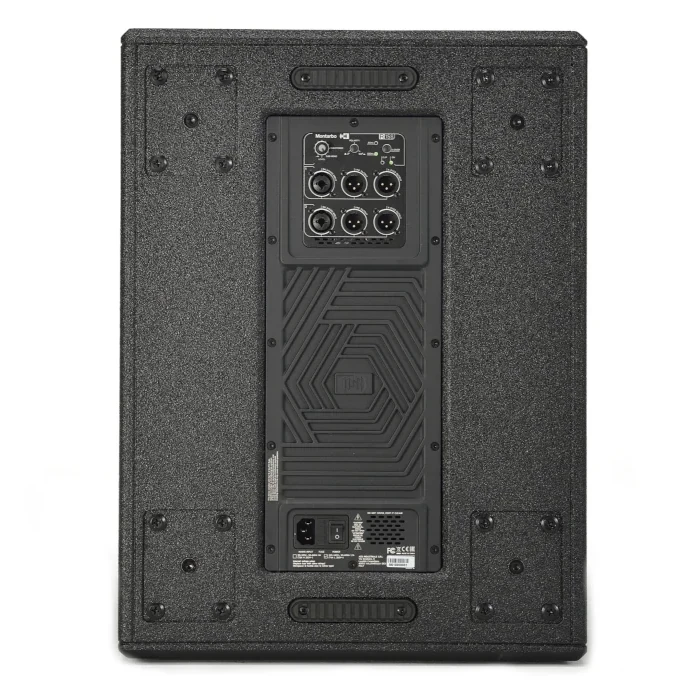

Connectors: CH1/CH2 Combo Inputs, LINE OUT XLR-M (Link Crossover)
-
Dimensions (W x H x D): 430 x 580 x 590 mm (16.9” x 22.8” x 23.2”)
-
Weight: 31.9 kg (70.32 lb)
-
Cabinet: Multilayer wood with durable polyurea finish
