Description

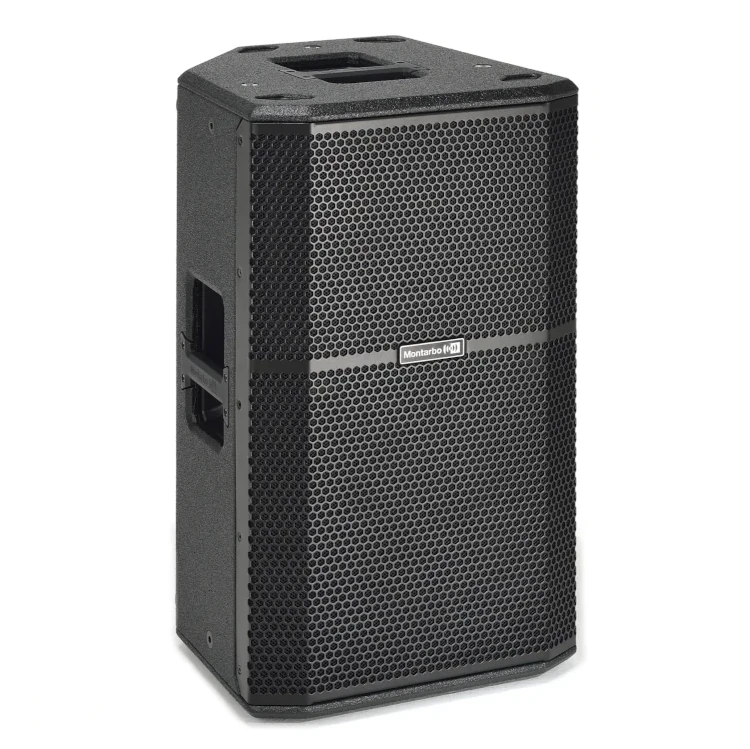

The Montarbo R Series includes four full-range wooden cabinets from 8″ to 15″, along with dedicated 15″ and 18″ active subwoofers. Designed for professional audio applications, the R Series delivers powerful sound pressure levels with exceptional clarity, particularly in the vocal range. Advanced FIR filter processing ensures linear phase response and precise, transparent sound reproduction.
Each full-range cabinet features four easily selectable EQ presets, offering flexibility for a variety of applications—including use as stage wedges. The system includes two input channels with independent level controls: one mic/line combo input and an additional line input. A switch on the output channel allows users to choose between a direct link signal or a mixed output from both channels.

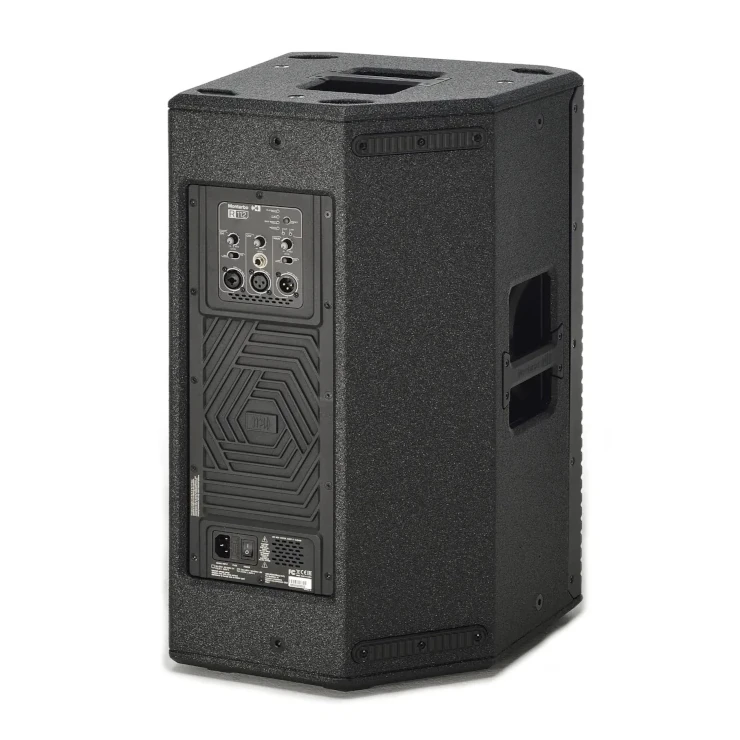

The enclosures are built from multilayer wood with a durable polyurea finish. Their clean, modern design is complemented by flush-mounted aluminum side handles, combining professional aesthetics with practical portability.
Key Features
-
Speaker Type: 2-way active bass reflex
-
Frequency Response (-10 dB): 51 Hz – 20 kHz
-
Maximum SPL: 131 dB
-
HF Driver: 1.75″
-
LF Driver: 12″ with 3″ voice coil
-
Dispersion: 90° (H) × 40° (V)
-
Crossover Frequency: 1.5 kHz
-
Amplifier Class: D
-
RMS Power: 600 W
-
Peak Power: 1200 W
-
Cooling: Passive radiator
-
Advanced Processing: FIR filters
-
DSP: 28/56-bit
-
AD/DA Converter: 24-bit, 48 kHz
-

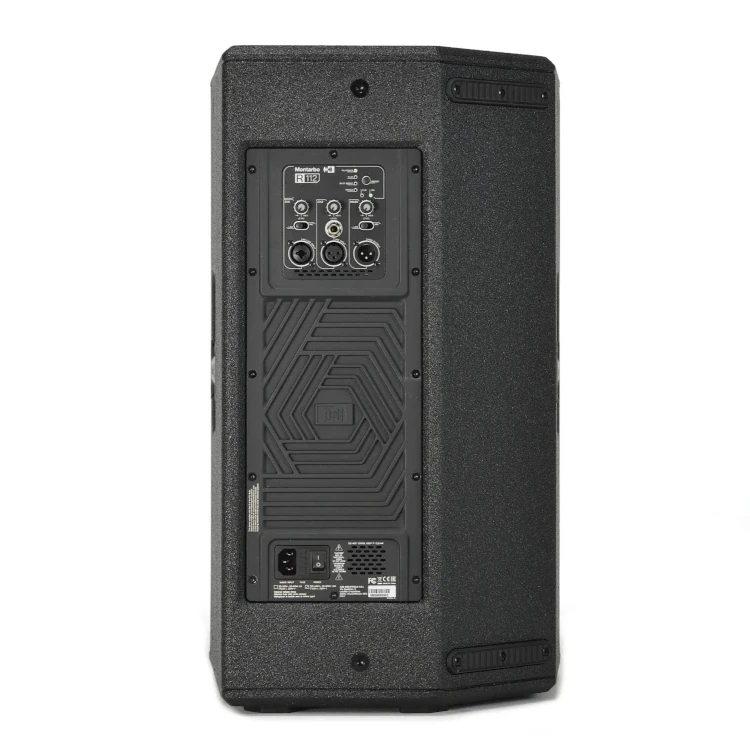

Controls: Channel level, main level, preset selector, channel 1 sensitivity, link/mix output
-
Connectors:
-
CH1: Combo (XLR/Jack)
-
CH2: XLR-F 6.35 mm (1/4”) jack
-
Line Out: XLR-M
-
-
Dimensions (W × H × D): 359 × 610 × 350 mm (14.2” × 24” × 13.8”)
-
Weight: 21 kg (46.3 lb)
-
Cabinet: Multilayer wood with polyurea coating
