The RCF ART 945-A is a powerhouse in a sleek and portable package, delivering up to 135 dB SPL driven by a robust 2,100 W Class-D bi-amp
The RCF ART 945-A 15 inch Active Speaker
This speaker features a 15″ neodymium woofer and a 4″ titanium compression driver, it covers an expansive 45 Hz to 20 kHz frequency range with 100° × 60° coverage. RCF’s FiRPHASE zero-degree phase technology, Bass Motion Control, and a True Resistive Waveguide ensure crystal-clear sound, tight bass, and smooth dispersion. Built to withstand the rigors of touring and installation, the composite cabinet includes an M-brace internal reinforcement, integrated handles, and multiple rigging points—ideal for floor, pole, flown, or wall setups.
Acoustical Performance
-
Frequency Response: 45 Hz – 20 kHz (linear)
-
Maximum SPL (@ 1 m): 135 dB
-
Coverage: 100° horizontal × 60° vertical
Drivers & Amplification
-
Compression Driver: 1.4″ neodymium with 4″ voice coil, titanium diaphragm
-
Woofer: 15″ neodymium woofer with 3.5″ voice coil
-
Amplifier: 2,100 W peak Class-D bi-amplifier
-
HF: 700 W peak
-
LF: 1,400 W peak
-
Signal Processing & Features
-
DSP Technologies:
-
FiRPHASE zero-degree phase alignment
-
Bass Motion Control (BMC) for precise woofer excursion management
-
-
Presets: Linear, Boost, Stage (selectable via button)
-
Protections: Thermal, RMS, soft limiter Crossover Frequency: 650 Hz
Connectivity
-

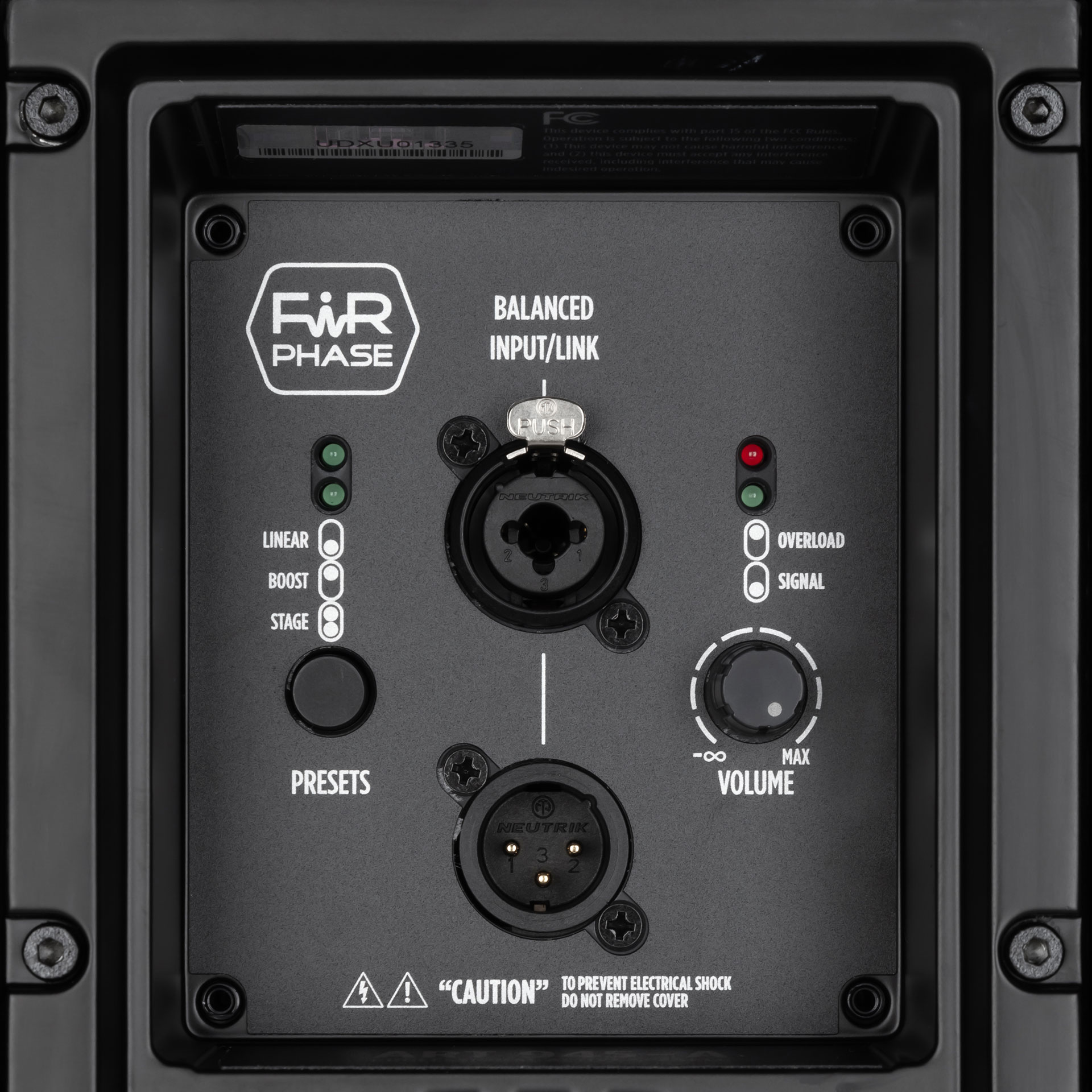

Inputs: Balanced/unbalanced via XLR and ¼″ jack (combo)
-
Outputs: XLR thru for daisy-chaining
-
Input Sensitivity: -2 dBu / 4 dBu
-

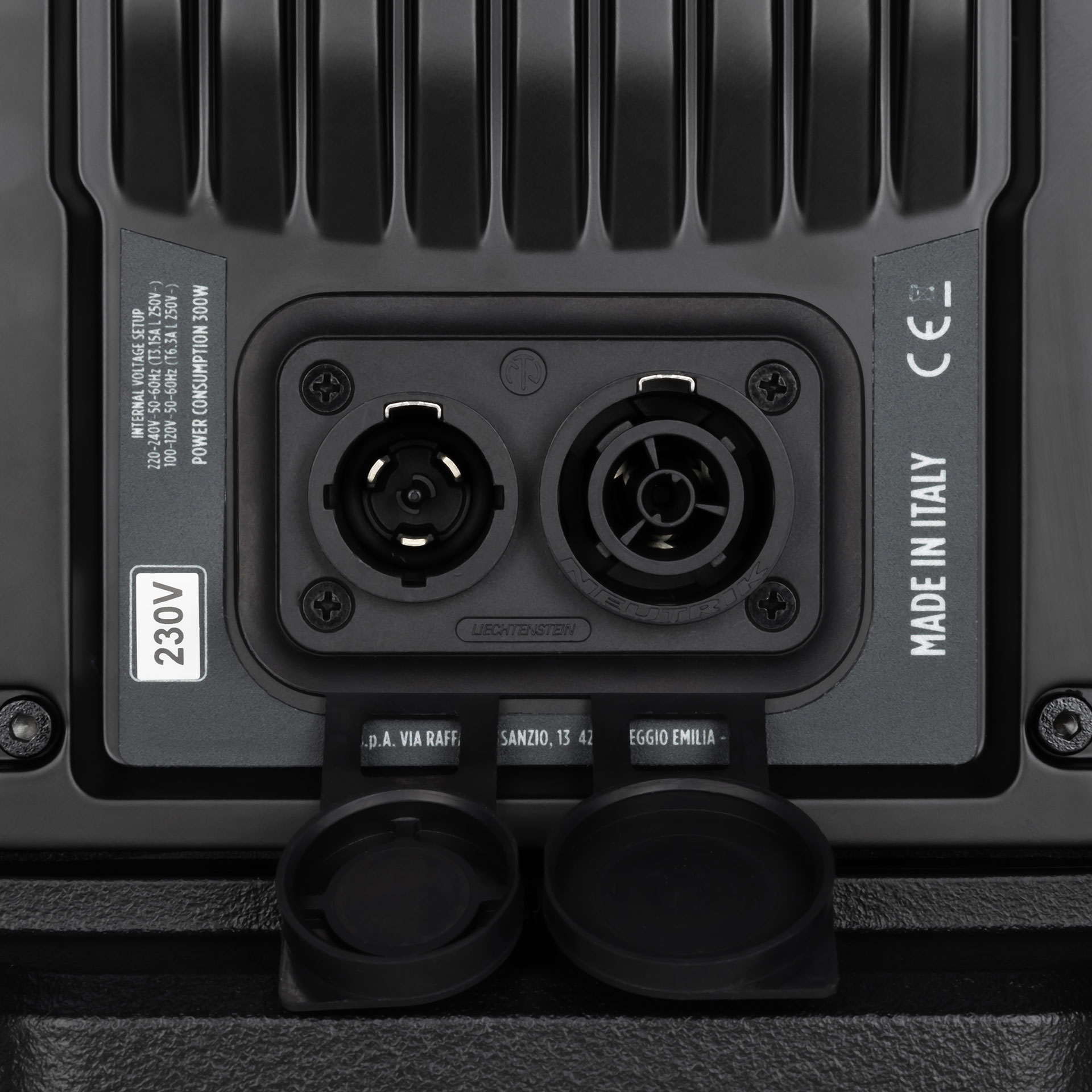

Power Connection: PowerCON TRUE1 TOP in/out for rugged, weather-resistant power handling
Cabinet & Build
-
Cabinet Material: Polypropylene composite with internal M-brace reinforcement for rigidity and damping Grille: Robust steel grille protecting transducers and port
-
Rigging Hardware:
-
M10 rigging points (top and sides)
-
Pole-mount compatible (35 mm)
-
Physical Dimensions & Weight
-
Dimensions (H × W × D):
-
717 × 415 × 410 mm (28.23″ × 16.34″ × 16.14″)
-
-
Weight: ~22.1 kg
